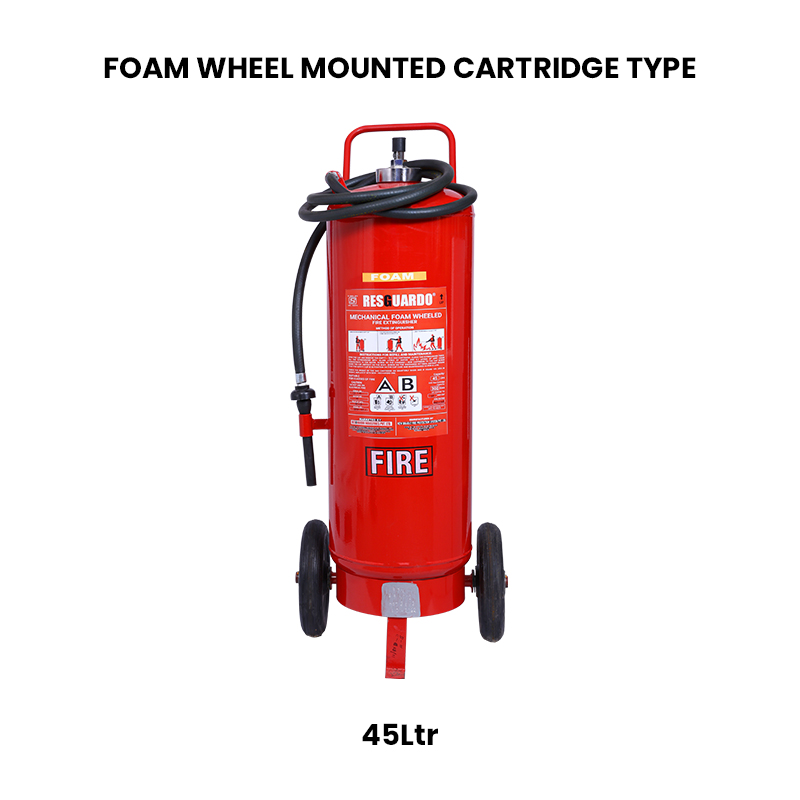

FOAM WHEEL MOUNTED CARTRIDGE TYPE-09

Foam Type Wheel Mounted Cartridge Fire Extinguisher

Introducing the cutting-edge Resguardo ISI-marked foam wheel-mounted cartridge fire extinguisher. Designed to revolutionize fire suppression and safety measures, these innovative systems offer unmatched effectiveness and convenience.



The foam-type fire extinguisher is ISI-marked and is designed to extinguish A and B class fires involving wood, paper, cloth, textiles, stationery, flammable and volatile liquids such as oil, petrol, kerosene, solvents, chemicals, wax, resins, etc.


Application Areas - Education Institutions, Industrial Facilities, Warehouses, Power Plants and Utilities, Oil and Gas Industry, Airports and Transportation Hubs, Workshops, & Generator Rooms.



Technical Specification

Fire Extinguisher Capacity

45 KG

Type of fire extinguisher

CARTRIDGE TYPE

Fire Rating

20A, 233 B

Empty weight (KG) Approx.

35 kg

Full weight (KG) Approx.

80 kg

IS Standard

IS : 16018 : 2012

Throw of jet maintained

40 sec

Range of jet

10mtr

Working Pressure

15 KGF/CM²

Hydro Pressure

35 KGF/CM²

Bursting Pressure

55 KGF/CM²
